FAG Angular Contact Bearings

2020-04-22 10:03    Author:admin   Click:

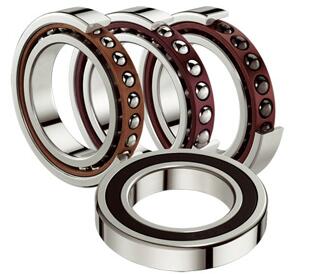

FAG angular contact ball bearings have a higher limit speed and can bear both radial and axial loads, as well as pure axial loads. The axial load capacity is determined by the contact angle, and the single row angle increases with the contact angle. The contact ball bearing can only bear axial load in one direction. When it bears radial load, it will cause additional axial force, which must be dragged to the corresponding reactive load. Therefore, this type of bearing generally uses double row angular contact balls in pairs. The bearing bears a large radial load mainly radial, axial two-way combined load and moment load. It can limit the axial displacement of the shaft or the housing in two directions. The contact angle is 30 degrees. The angular contact ball bearings installed in pairs can bear a radial The main radial and axial combined load can also bear radial load. The series configuration can only withstand axial load in one direction, while the other two configurations can withstand axial load in either direction.

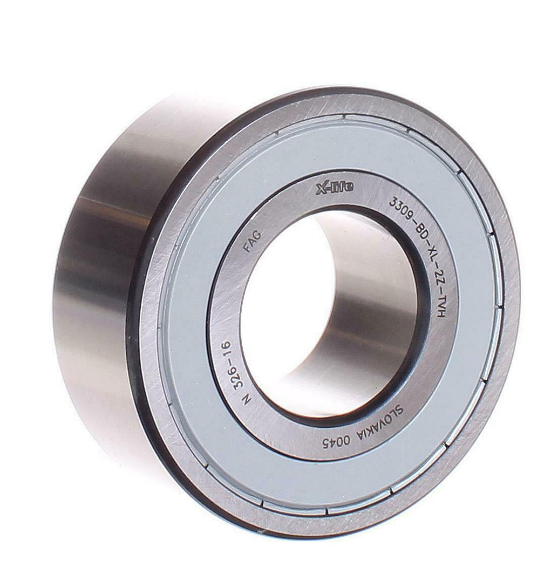

 FAG angular contact bearings are widely used in machine tool spindles, high-frequency motors, gas turbines, adjustment centrifuges, small car front wheels, oil pump air compressors, etc. Online FAG angular contact bearings 3309-BD-XL-2Z-TVH

FAG angular contact bearing characteristics

(FAG Angular Contact Ball Bearings) can bear radial load and axial load at the same time. Can work at a higher speed. The greater the contact angle, the higher the axial load carrying capacity. High-precision and high-speed bearings usually take a contact angle of 15 degrees. Under the action of axial force, the contact angle will increase. Buy FAG Angular Contact Ball Bearings,click here

ERIC high-precision FAG angular contact ball bearing standard series Category: ERIC elite products Product introduction: Features: ISO-based precision bearing basic series. a, including 70 series, 79 series, 72 series b, contact angle C: 15 °, AC: 25 ° c, high speed, high load capacity, suitable for grease lubrication. For more information, please visit our website
